DSFB124NL-ST

DSFB124NL-ST Fiber Optic ST Feed Through Patch Panel Enclosure

Continue Shopping or Checkout

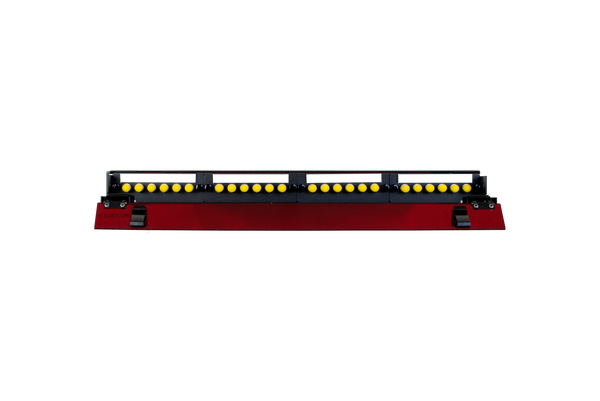

  • Bittree® Fiber-Optic Feed-Through Patch Panel in 1 RU with 1x24 Jack Configuration
    Access to the connections easy via the tray that can be released and slide-out of the front or rear of the enclosure. Also increased access between ports enable the ease of moves, adds, and changes for fiber-optic network.


    Coupler/Adaptor Properties:
    • Simplex ST to ST
    • Supports both multi-mode and single-mode applications
    • Small form factor design enables higher density patching
    • ANSI/TIA-568-C and UL 1863 compliant

    Panel Features:

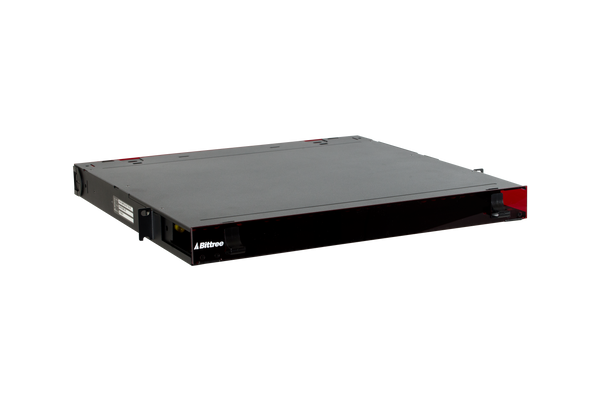

    • Cold rolled steel construction with a durable black powder-coat finish

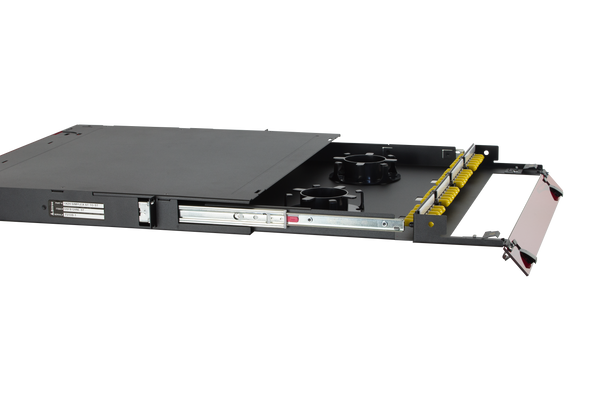

    • 3-Position removable sliding tray provides easy access for splicing and maintaining cable organization

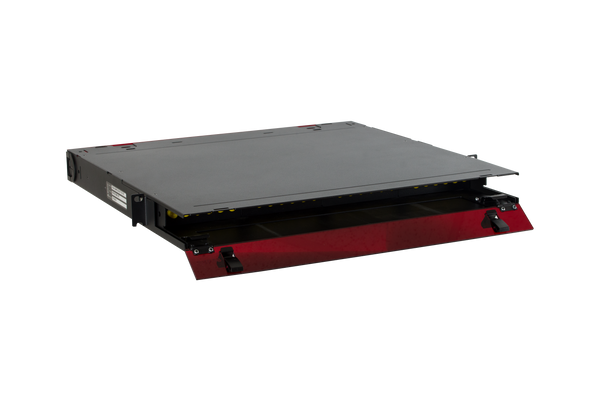

    • Fold-down plexiglass front window allows quick visual inspection of patch interface
    • Net Weight: 12.34 lbs.
    • Dimensions: 44mm(H)x 448mm(W)x 467.5mm(D)
    • Material: Steel with black powder coating
    • Modular Design: loaded with (4) DSFP14M-STSTM

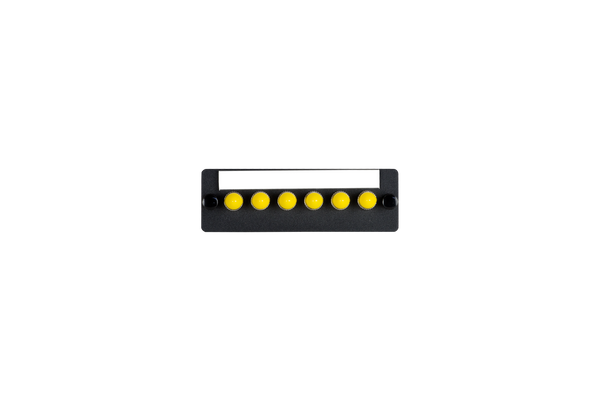

    • Includes 1x6 ST toss connectors with integral designation strip

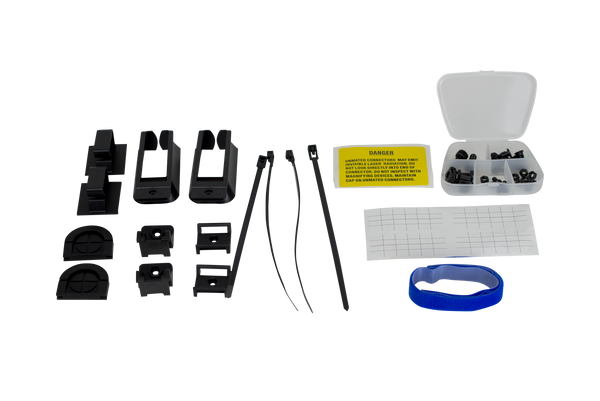

    • Accessories: Mounting hardware and accessory kit with labels included
    • Precision sliding drawer is ideal for panel access management
    • Integral cable management • Interconnect and cross-connect capability

    Compliance:
    • RoHS Compliance – See our RoHS compliance statement to learn more





  • Product Files:
    Data Sheet Coming Soon
    Circuit Schematics Coming Soon
    Designation Strip Template DOCX
    Technical Drawings:
    DSFB124-ST DWG PDF
