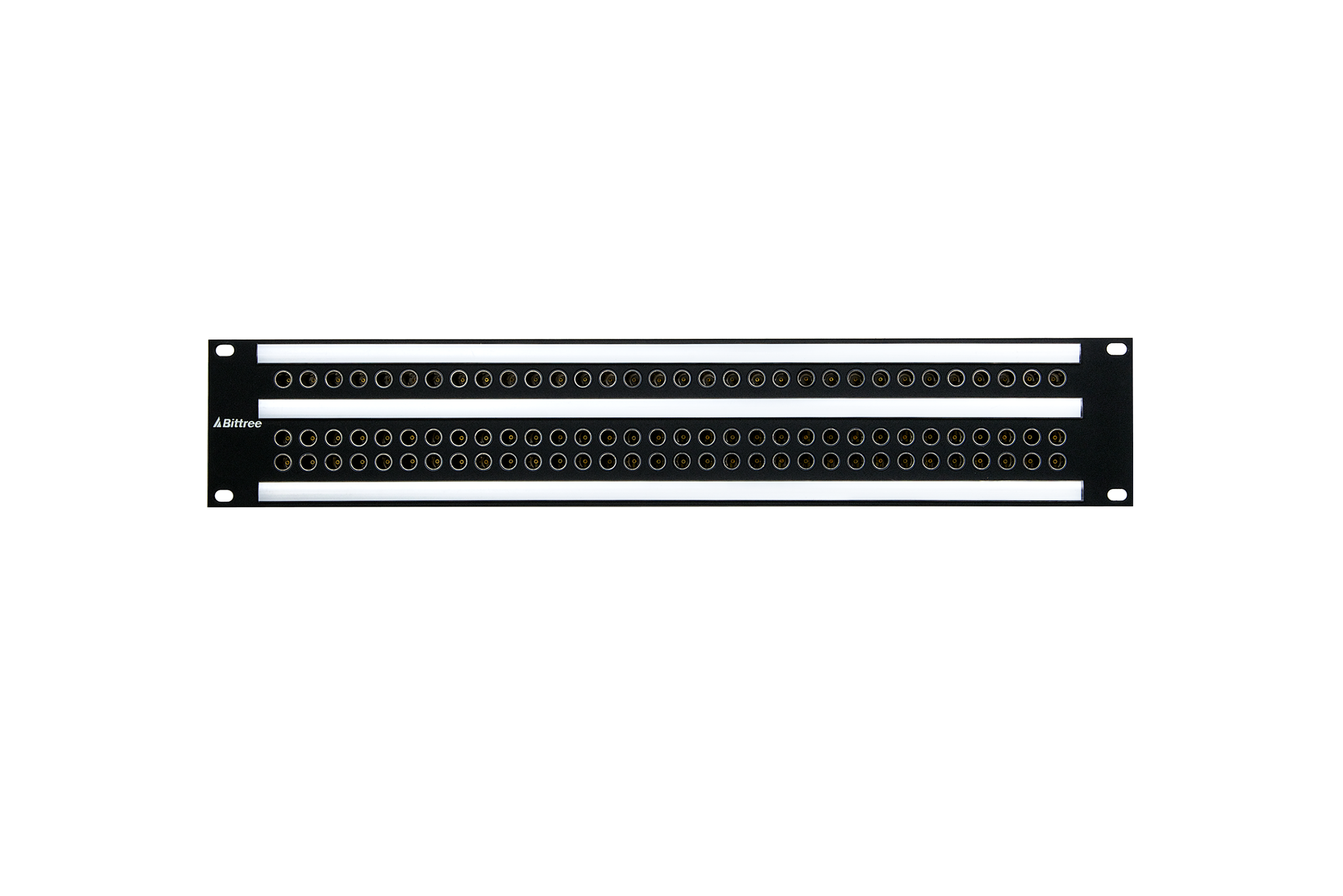

Bittree® Mini-WECO (Midsize) Video Patchbay in 2 RU Height with 3x32 Jack Configuration
Mini-WECO Video Jack Properties:
• High-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s and 3D applications
• SMPTE 259M, 292M and 424M compliant
• True 75 ohm impedance with low return loss
Panel Features:
• 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
• Rear-mounted jack modules
• Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
• 3 x DS430-10 Designation Strips:
- Extruded aluminum bars with clear plastic snap-over caps

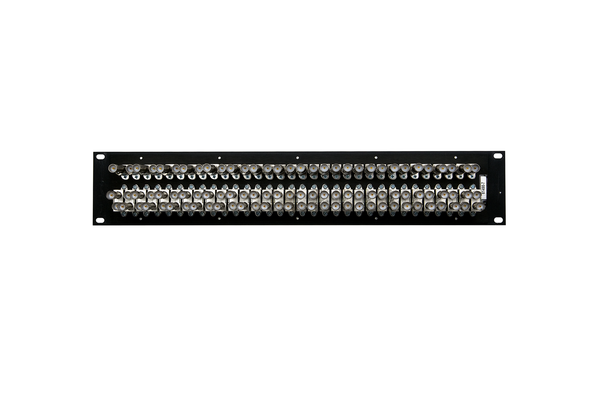

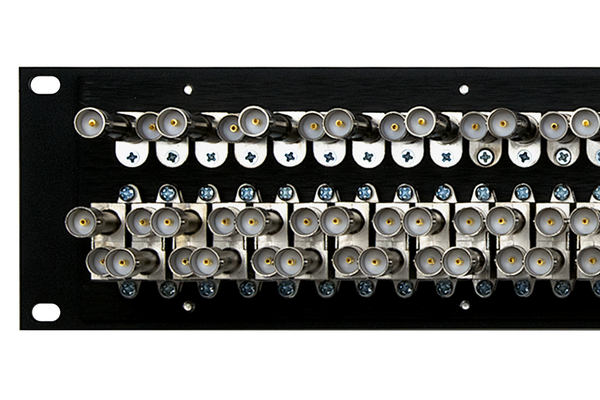

• Staggered BNC Rear Interface
Options:

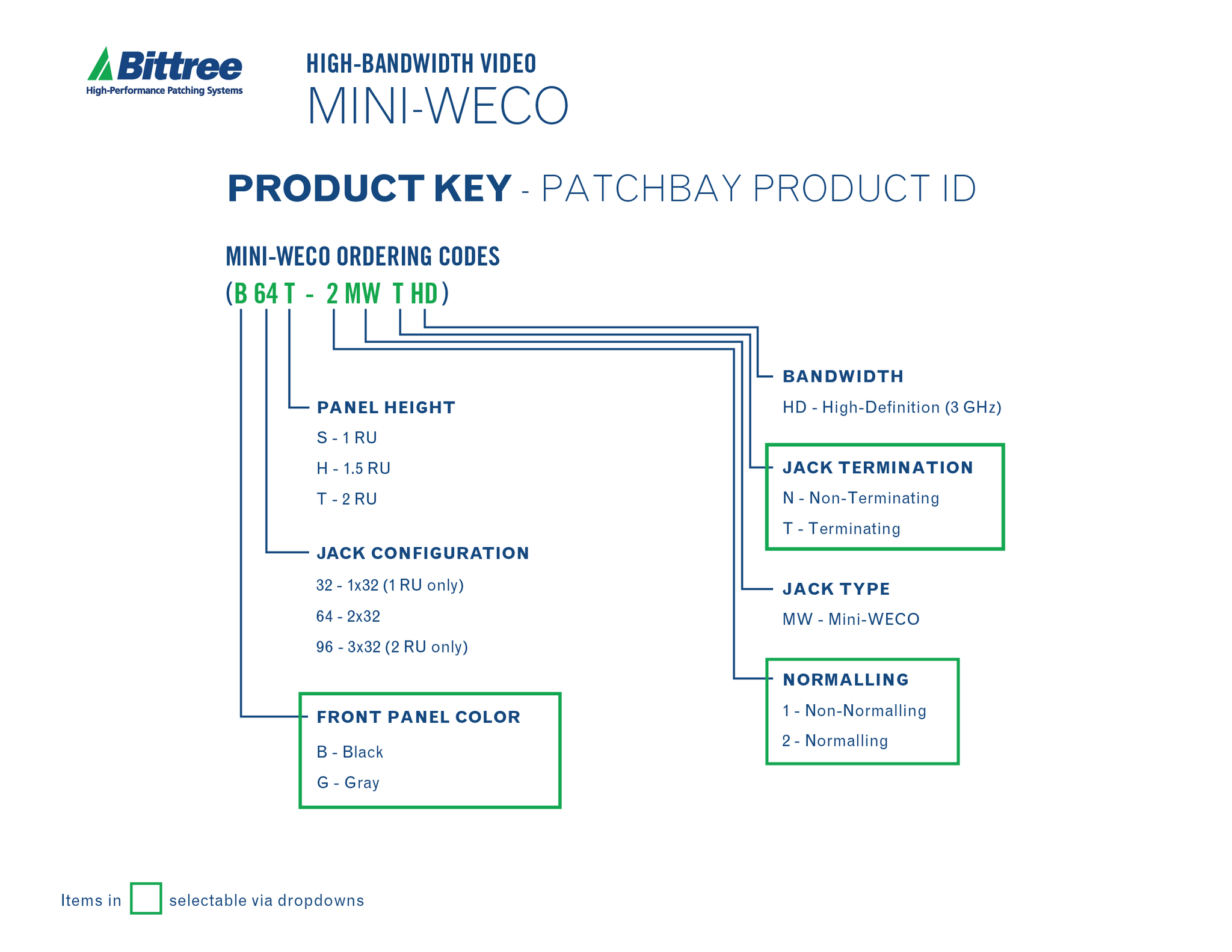

• Mini-WECO video jacks may be ordered in four different configurations:
- Self-normalling with 75 ohm termination (2MWTHD)
- Self-normalling, non-terminating (2MWNHD)
- Non-normalling (straight-through) with 75 ohm termination (1MWTHD)
- Non-normalling (straight-through), non-terminating (1MWNHD)
- Additional jack configurations available; please contact factory for details

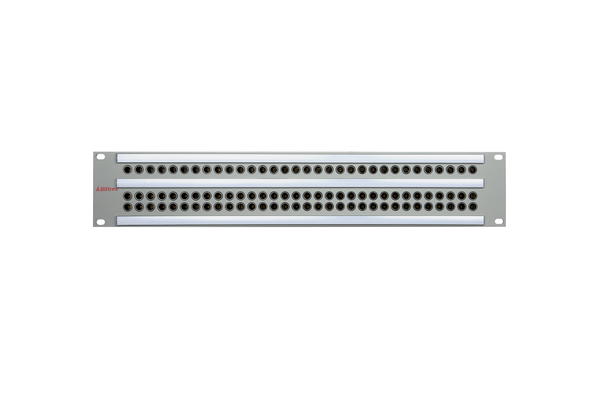

• Front Panel Color – Black or Gray scratch resistant powder-coat finish
