BNC4855R12

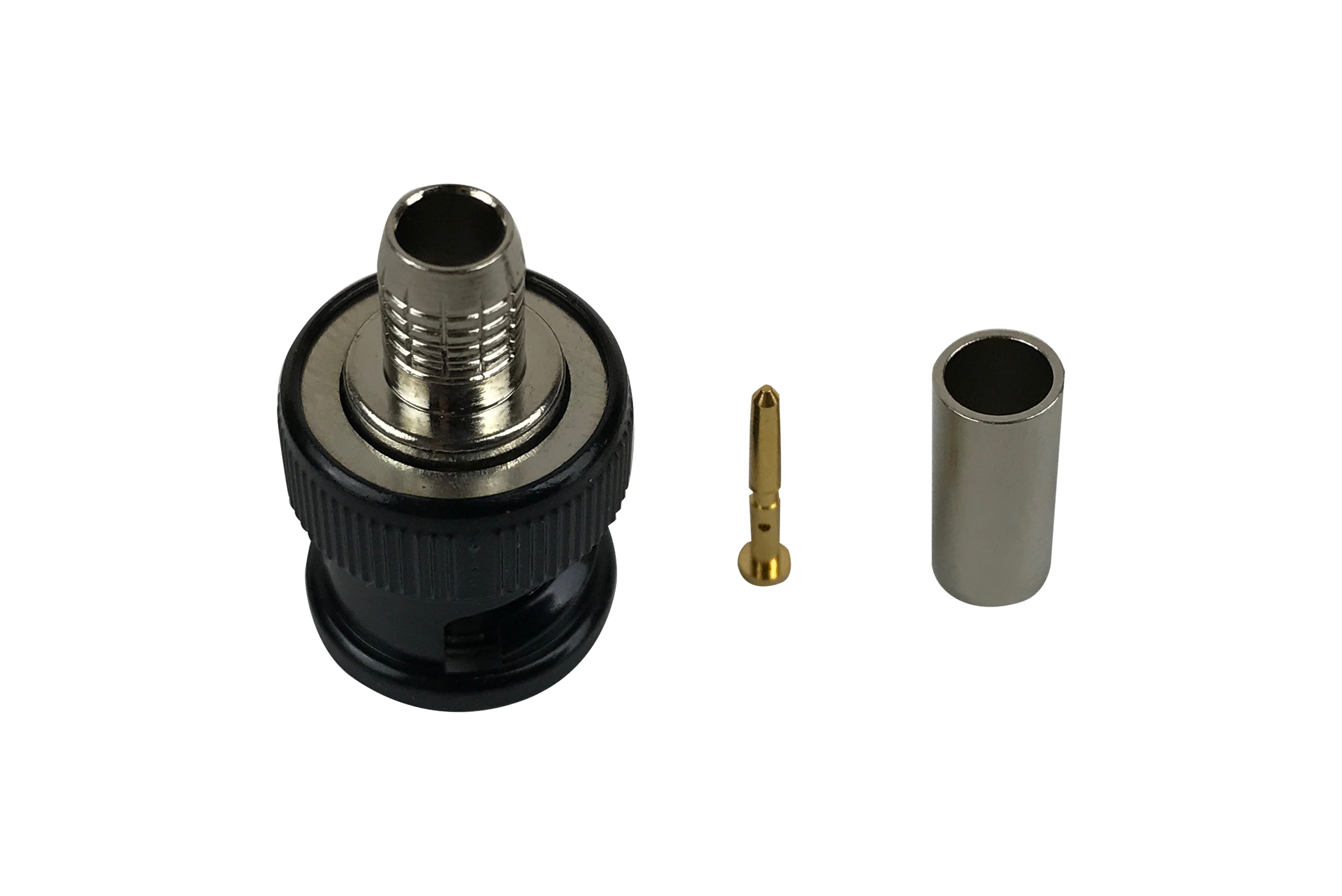

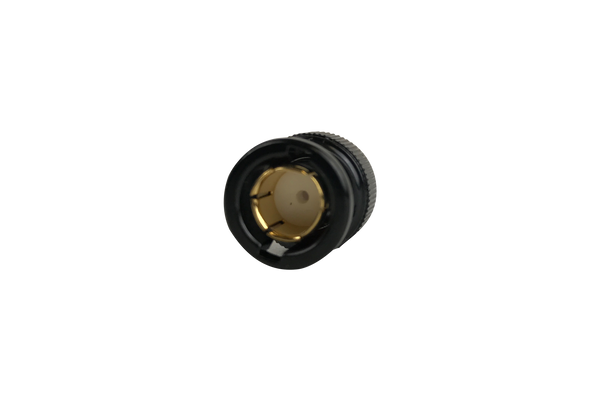

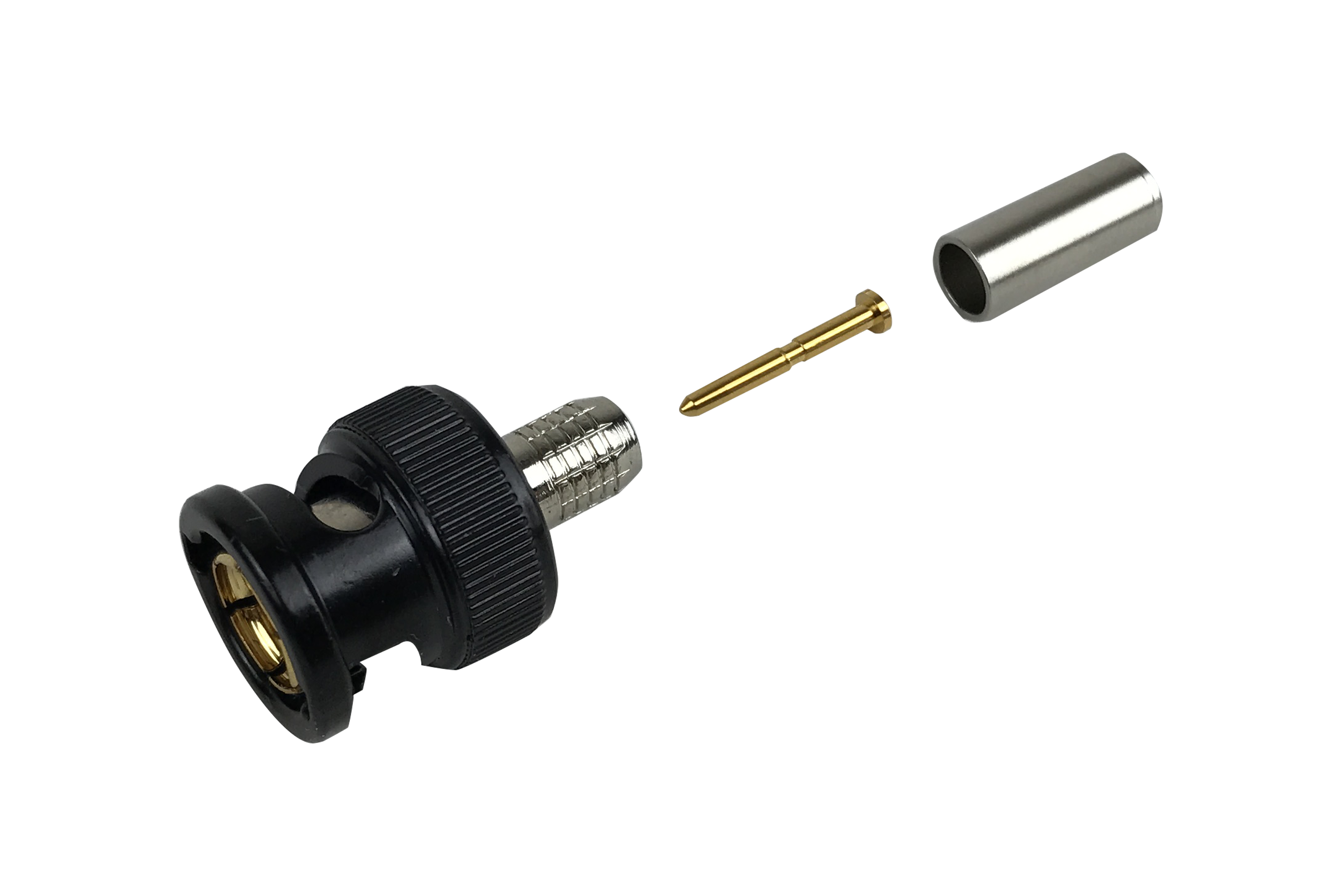

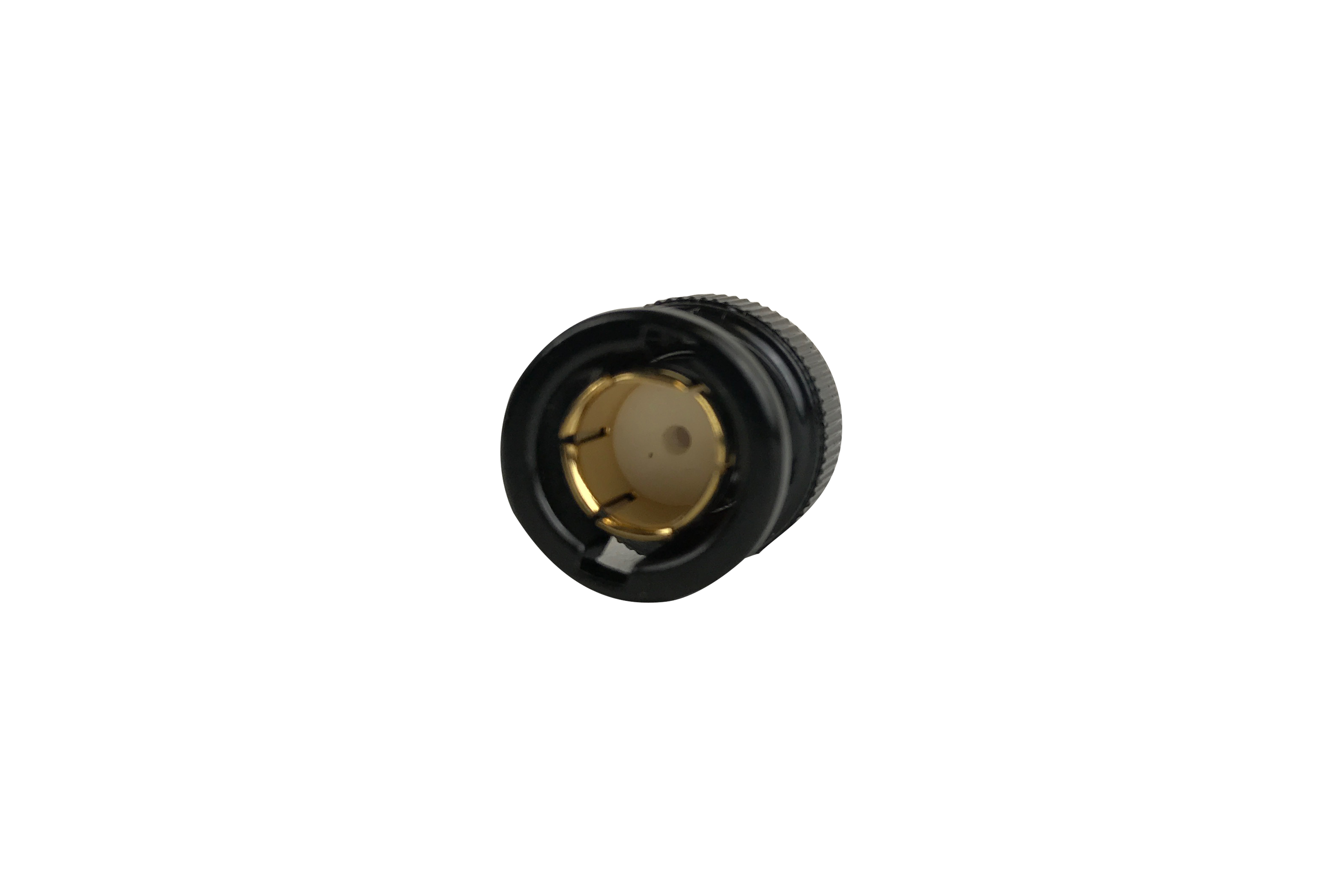

BNC Connector - BNC Straight Crimp / Crimp Plug

Make a selection

Continue Shopping or Checkout
  • Bittree® BNC Connector
    BNC Straight Crimp / Crimp Plug

    BNC4855R12:
    • Suitable for Cables: Belden 1855A, 4855R
    • Stripping Dimensions: Please see Data Sheet
    • Tooling:
      Center Contact: SQ 1.07 [0.0421"] A/F
      Crimp Sleeve: HEX 4.52 [0.178"] A/F
      Tool No: BCT550594
    • Performance:
       -27.56 dB @ 3.0 GHz
       -21.59 dB @ 6.0 GHz
       -20.15 dB @ 12.0 GHz
       -20.94 dB @ 18.0 GHz

    BNC4505R12:
    • Suitable for Cables: Belden 1505A, 4505R
    • Stripping Dimensions: Please see Data Sheet
    • Tooling:
      Center Contact: SQ 1.07 [0.0421"] A/F
      Crimp Sleeve: HEX 6.48 [0.255"] A/F
      Tool No: BCT550594
    • Performance:
       -30.39 dB @ 3.0 GHz
       -23.90 dB @ 6.0 GHz
       -23.28 dB @ 12.0 GHz
       -20.30 dB @ 18.0 GHz

    BNC4694R12:
    • Suitable for Cables: Belden 1694A, 4694R
    • Stripping Dimensions: Please see Data Sheet
    • Tooling:
      Center Contact: SQ 1.07 [0.0421"] A/F
      Crimp Sleeve: HEX 7.06 [0.278"] A/F
      Tool No: BCT550594
    • Performance:
       -30.18 dB @ 3.0 GHz
       -21.12 dB @ 6.0 GHz
       -23.03 dB @ 12.0 GHz
       -28.63 dB @ 18.0 GHz

    BNC4794R12:
    • Suitable for Cables: Belden 1794A, 4794R
    • Stripping Dimensions: Please see Data Sheet
    • Tooling:
    Center Contact: SQ 1.72 [0.068"] A/F
    Crimp Sleeve: HEX 8.23 [0.324"] A/F
    Tool No: BCT174794
    • Performance:
    -32.79 dB @ 3.0 GHz
    -25.40 dB @ 4.5 GHz
    -21.08 dB @ 6.0 GHz
    -20.20 dB @ 12.0 GHz


    • Environmental Specification
      Operating Temp: -55 to +155 Deg C./ -67 to +311 Deg F.
      IP Rating (Mated): IP 64

    • Electrical Specification:
      Impedance: 75 Ohm
      Frequency: 0-18 GHz
      Dielectric W/V: 1500 Veff
      Insulation res: 5000 M-Ohm

    • Mechanical Specification:
      Contact Retention: 10 N min
      Cable Retention: 200 N min
      Mating cycles: 500
      Weight: 12.22 g

    Compliance:
    • RoHS Compliance – See our RoHS compliance statement to learn more





  • Technical Drawings:
    BNC4855R12 PDF
    BNC4505R12
    PDF
    BNC4694R12
    PDF
    BNC4794R12 PDF

Category: Accessories, BNC, Connectors
