B96DC-FNRST/E3 S2OU12B

SKU# 968S623

968s - 2x48 2RU TT Patchbay, Internally Selectable TRS Audio, Stereo Jack Spacing

$ 1,984.00

Continue Shopping or Checkout
  • Bittree® Internally Selectable TT (Bantam) 968s Series Audio Patchbay in 2RU
    • High-density 2x48 jack configuration with stereo jack spacing (jacks grouped in pairs)
    • Selectable normalling and grounding:
    - Circuits can be easily changed via shunts under both top and bottom dust covers
    • Digital AES wire used for internal wiring
    • 1-24 left-to-right numbering on front panel for easy circuit identification
    • 2 x DS870-10-ASSY designation strip assemblies, "Over/Under" orientation
    • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
    • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces:
    - Alternative 3" (7.62 cm) deep lacing bar available

    Options
    • Rear Interface – choose from four standard rear interfaces:
    - E3 (3 pin ELCO connectors)
    - DB25
    - ID (Punchdown)

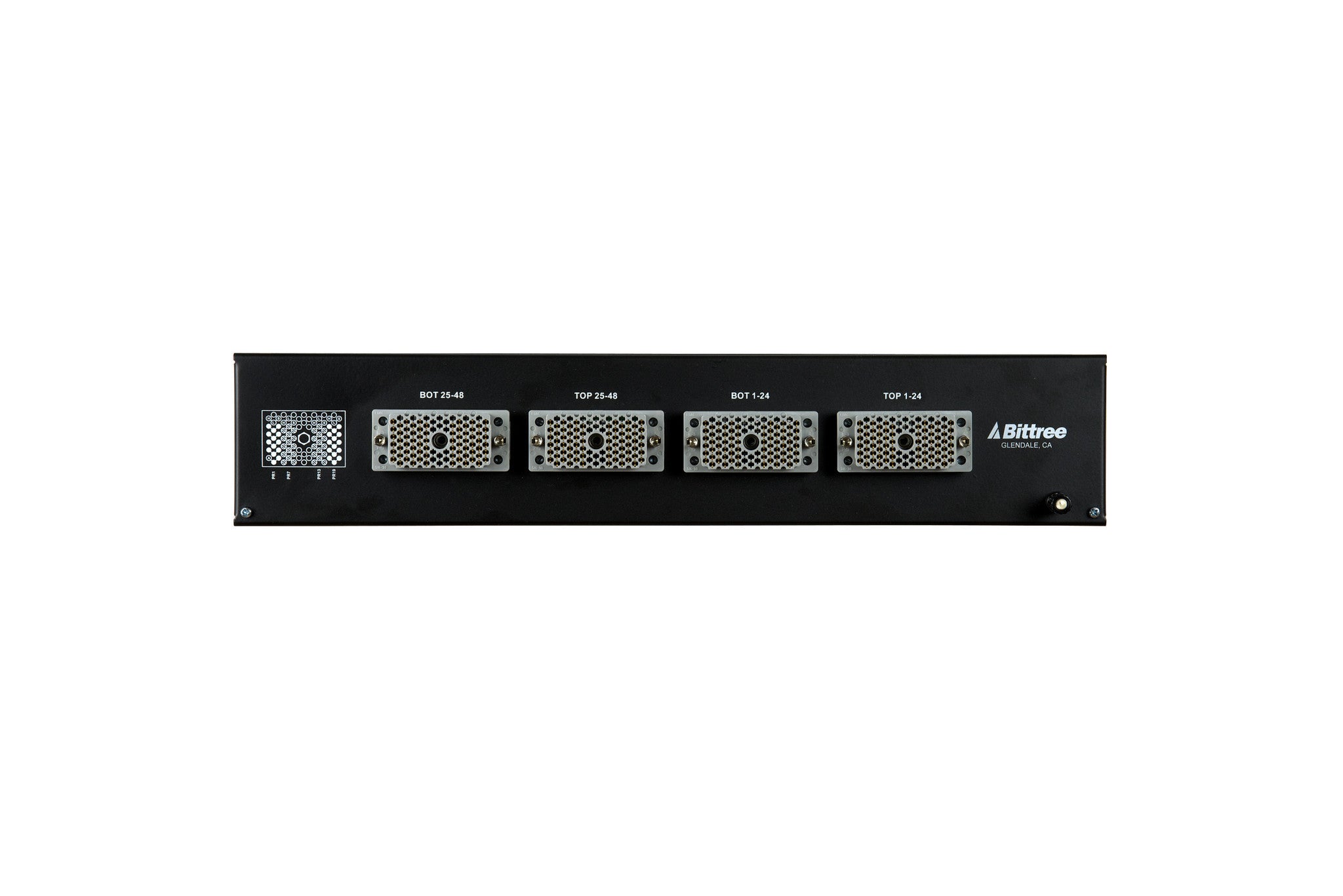

    - E90 (90 pin ELCO connectors)
    • Normalling & Grounding – choose from three standard configurations or specify your own at checkout:
    - Normalling – circuits can be programmed to full normal, half normal or non- normal
    - Grounding – patchbays are supplied with switched grounds by default; circuits can be reprogrammed for bussed, isolated, or looped grounds
    • Chassis Depth:
    - 12" (30.48 cm) deep, fully enclosed
    - 7" (17.78 cm) deep, fully enclosed

    About Switched Grounds (Sleeve Normalling)
    Patchbays with switched grounds feature an additional switching contact in every jack.
    Grounds are lifted when patching, ensuring a proper grounding scheme is maintained, and ground loops, or earth loops, are avoided.

    Compliance
    • RoHS Compliance – See our RoHS compliance statement to learn more

    • See Product Key at the end of image slide show for more information on Product ID codes



  • Product Files:
    Circuit Schematics PDF
    Programming Instructions PDF
    Designation Strip Template DOCX
    E3 Rear Interface - Technical Drawings:
    B96DC-FNRST/E3 S2OU12B DWG PDF
    B96DC-HNRST/E3 S2OU12B DWG PDF
    B96DC-NNRST/E3 S2OU12B DWG PDF
    B96DC-FNRST/E3 S2OU7B DWG PDF
    B96DC-HNRST/E3 S2OU7B DWG PDF
    B96DC-NNRST/E3 S2OU7B DWG PDF
    DB25 Rear Interface - Technical Drawings:
    B96DC-FNRST/D25 S2OU12B DWG PDF
    B96DC-HNRST/D25 S2OU12B DWG PDF
    B96DC-NNRST/D25 S2OU12B DWG PDF
    B96DC-FNRST/D25 S2OU7B DWG PDF
    B96DC-HNRST/D25 S2OU7B DWG PDF
    B96DC-NNRST/D25 S2OU7B DWG PDF
    ID Rear Interface - Technical Drawings:
    B96DC-FNRST/ID S2OU12B DWG PDF
    B96DC-HNRST/ID S2OU12B DWG PDF
    B96DC-NNRST/ID S2OU12B DWG PDF
    B96DC-FNRST/ID S2OU7B DWG PDF
    B96DC-HNRST/ID S2OU7B DWG PDF
    B96DC-NNRST/ID S2OU7B DWG PDF
    E90 Rear Interface - Technical Drawings:
    B96DC-FNRST/E90 S2OU12B DWG PDF
    B96DC-HNRST/E90 S2OU12B DWG PDF
    B96DC-NNRST/E90 S2OU12B DWG PDF
    B96DC-FNRST/E90 S2OU7B DWG PDF
    B96DC-HNRST/E90 S2OU7B DWG PDF
    B96DC-NNRST/E90 S2OU7B DWG PDF

Category: 110 ohm Audio, 2 RU, 2RU, 6 Lug, 96 Point, Bantam, D25, DB25, Dual Bantam, Dual TT, E3 (3 Pin Elco Connector), E3 Rear Interface, E90 (90 Pin Elco Connector), E90 Rear Interface, ID (Punchdown), ID (Punchdown) Rear Interface, Internally Programmable, Internally Programmable 968-S Series, Internally Programmable 968S Series, jackfield, Patchbay, Programmable Patchbays, Punchdown, Sleeve Normalling, Stereo Spacing, Switched Grounds, TT, TT (Bantam)

Type: Audio
