B96DC-FNRSH/E3 S2OU12B

SKU# 968S607

968s - 2x48 1.5RU TT Patchbay, Internally Selectable TRS Audio, Stereo Jack Spacing

$ 1,984.00

Continue Shopping or Checkout
  • Bittree® Internally Selectable TT (Bantam) 968s Series Audio Patchbay in 1.5RU
    • High-density 2x48 jack configuration with stereo jack spacing (jacks grouped in pairs)
    • Selectable normalling and grounding:
    - Circuits can be easily changed via shunts under both top and bottom dust covers
    • Digital AES wire used for internal wiring
    • 1-24 left-to-right numbering on front panel for easy circuit identification
    • 2 x DS800-10-ASSY designation strip assemblies, "Over/Under" orientation
    • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
    • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces:
    - Alternative 3" (7.62 cm) deep lacing bar available

    Options
    • Rear Interface – choose from four standard rear interfaces:
    - E3 (3 pin ELCO connectors)
    - DB25
    - ID (Punchdown)
    - E90 (90 pin ELCO connectors)
    • Normalling & Grounding – choose from three standard configurations or specify your own at checkout:
    - Normalling – circuits can be programmed to full normal, half normal or non- normal
    - Grounding – patchbays are supplied with switched grounds by default; circuits can be reprogrammed for bussed, isolated, or looped grounds
    • Chassis Depth:
    - 12" (30.48 cm) deep, fully enclosed
    - 7" (17.78 cm) deep, fully enclosed

    About Switched Grounds (Sleeve Normalling)
    Patchbays with switched grounds feature an additional switching contact in every jack.
    Grounds are lifted when patching, ensuring a proper grounding scheme is maintained, and ground loops, or earth loops, are avoided.

    Compliance
    • RoHS Compliance – See our RoHS compliance statement to learn more

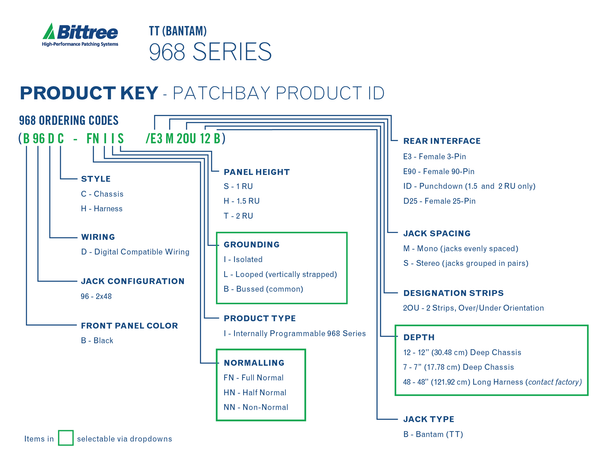

    • See Product Key at the end of image slide show for more information on Product ID codes



  • Product Files:
    Circuit Schematics PDF
    Programming Instructions PDF
    Designation Strip Template DOCX
    E3 Rear Interface - Technical Drawings:
    B96DC-FNRSH/E3 S2OU12B DWG PDF
    B96DC-HNRSH/E3 S2OU12B DWG PDF
    B96DC-NNRSH/E3 S2OU12B DWG PDF
    B96DC-FNRSH/E3 S2OU7B DWG PDF
    B96DC-HNRSH/E3 S2OU7B DWG PDF
    B96DC-NNRSH/E3 S2OU7B DWG PDF
    DB25 Rear Interface - Technical Drawings:
    B96DC-FNRSH/D25 S2OU12B DWG PDF
    B96DC-HNRSH/D25 S2OU12B DWG PDF
    B96DC-NNRSH/D25 S2OU12B DWG PDF
    B96DC-FNRSH/D25 S2OU7B DWG PDF
    B96DC-HNRSH/D25 S2OU7B DWG PDF
    B96DC-NNRSH/D25 S2OU7B DWG PDF
    ID Rear Interface - Technical Drawings:
    B96DC-FNRSH/ID S2OU12B DWG PDF
    B96DC-HNRSH/ID S2OU12B DWG PDF
    B96DC-NNRSH/ID S2OU12B DWG PDF
    B96DC-FNRSH/ID S2OU7B DWG PDF
    B96DC-HNRSH/ID S2OU7B DWG PDF
    B96DC-NNRSH/ID S2OU7B DWG PDF
    E90 Rear Interface - Technical Drawings:
    B96DC-FNRSH/E90 S2OU12B DWG PDF
    B96DC-HNRSH/E90 S2OU12B DWG PDF
    B96DC-NNRSH/E90 S2OU12B DWG PDF
    B96DC-FNRSH/E90 S2OU7B DWG PDF
    B96DC-HNRSH/E90 S2OU7B DWG PDF
    B96DC-NNRSH/E90 S2OU7B DWG PDF

Category: 1.5 RU, 1.5RU, 110 ohm Audio, 6 Lug, 96 Point, Bantam, D25, DB25, Dual TT, E3 (3 Pin Elco Connector), E3 Rear Interface, E90 (90 Pin Elco Connector), E90 Rear Interface, ID (Punchdown), ID (Punchdown) Rear Interface, Internally Programmable, Internally Programmable 968-S Series, Internally Programmable 968S Series, jackfield, Patchbay, Programmable Patchbays, Punchdown, Sleeve Normalling, Stereo Spacing, Switched Grounds, TT, TT (Bantam)

Type: Audio
