< 12G+ MICRO VIDEO PATCHBAYS


S64H-2MVTBK

12G+ Micro-Video Patchbay, 2x32, 1.5 RU

$ 3,442.00

Continue Shopping or Checkout

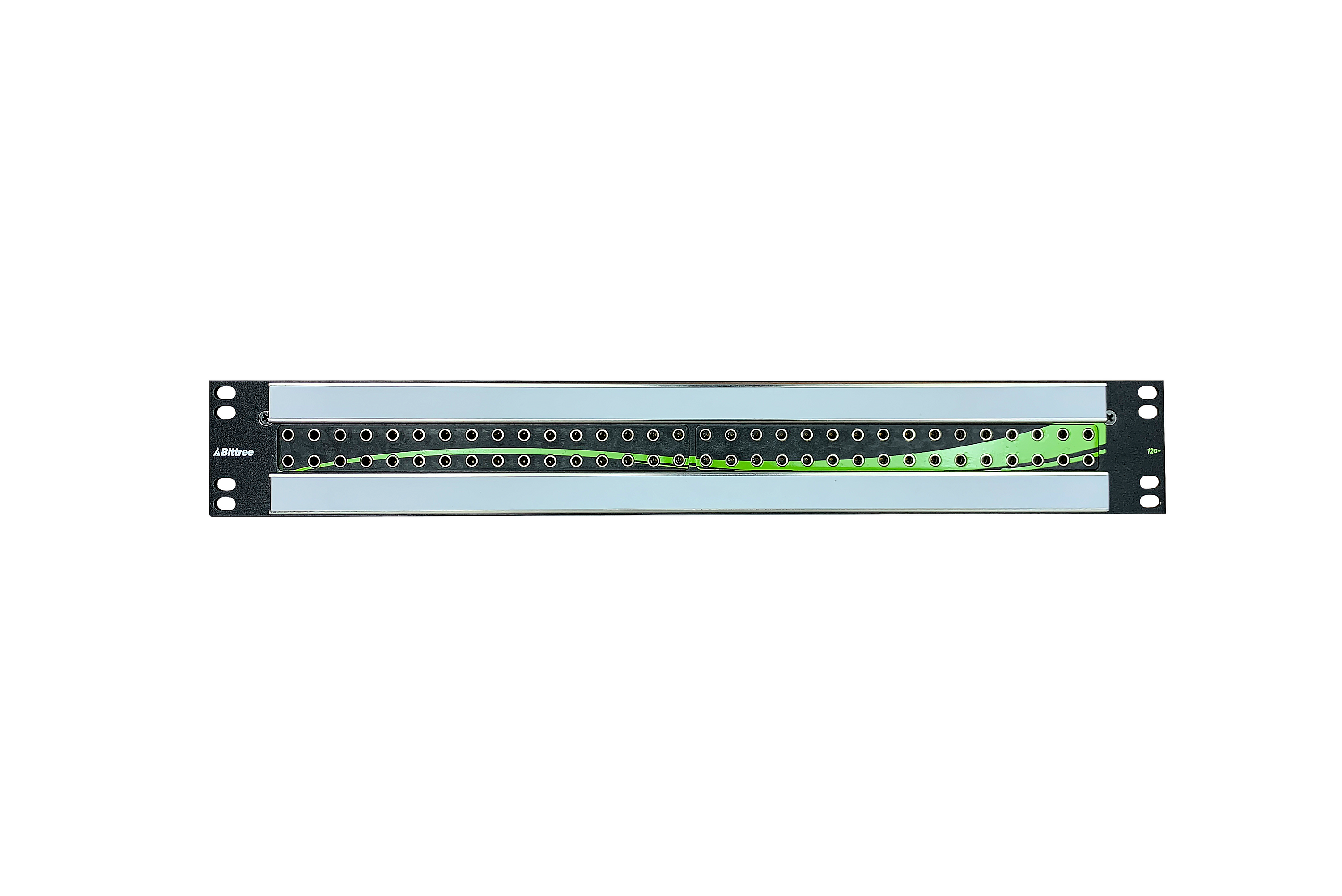

  • Bittree® 12G+ Micro-Video Patchbay in 1.5 RU with 2x32 Jack Configuration

    12G+ Micro-Video Video High-Density Single Link Patchbay Properties:
    • BNC, HD-BNC® (Micro), and DIN (1.0/2.3) back panel connectivity options
    • 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
    • Single link compatible
    • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
    • True 75 ohm impedance with low return loss
    • Life Cycle Rating:  20,000 cycles

    Options:
    • Rack Heights: 1 RU, 1.5 RU, 2RU
    • BNC, HD-BNC® (Micro), and DIN (1.0/2.3) back panel connectivity options

    Compliance:
    • RoHS Compliance – See our RoHS compliance statement to learn more





  • Product Files:
    Data Sheet Coming Soon
    Circuit Schematics Coming Soon
    Designation Strip Template
    Coming Soon
    Technical Drawings:
    S64H-2MVTBK DWG PDF
    S64H-2MVTMK
    DWG
    PDF
    S64H-2MVTDK
    DWG
    PDF
    S64H-1MVTBK
    DWG
    PDF
    S64H-1MVTMK
    DWG
    PDF
    S64H-1MVTDK
    DWG
    PDF
    S64H-1MVNBK
    DWG
    PDF
    S64H-1MVNMK
    DWG
    PDF
    S64H-1MVNDK
    DWG
    PDF

Category: 1.5 RU, 1.5RU, 12 GHz, 12G SDI, 12G+, 12G+ MICRO VIDEO PATCHBAYS, 12G+ Micro-Video, 4K, 4K SDI, 75 ohm Video, 8K, BNC Rear Interface, composite, HD-SDI, HDR, jackfield, patch panel, Patch Panels, Patchbay, single link, UHD-SDI

Type: 12G+ Micro-Video
